Pyxis probes and THOR controller

THOR Digital Controllers are compatible with Pyxis Modbus Inline Probes that are factory programmed with THOR compatible firmware.

It is important to note that only Pyxis Modbus (Digital) probes with the ERP firmware are compatible with THOR Digital Controllers.

To confirm a Pyxis Probe is compatible with a THOR Digital Controller

1. The Pyxis Probe MODEL will begin with "ERP - XXXX"  for example a THOR Compatible Pyxis Conductivity Inline Analyzer is Model ERP-720D,  Pyxis part number 53122

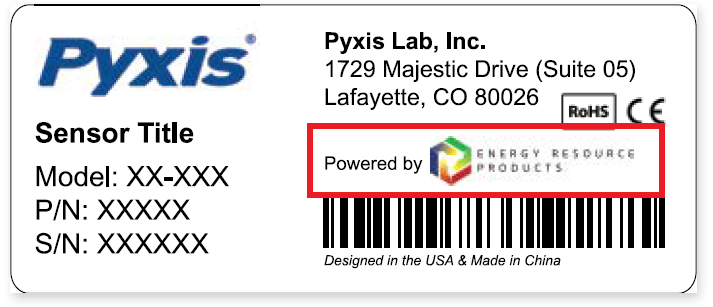

2. The Pyxis Probe will have a Powered by Energy Resource Products Logo on the Box and on the label on the probe. (See image below)

3. The Pyxis Probe requires a 5 Pin M12 connector. This is standard for all Digital Probes.

Compatibility only relates to Pyxis Modbus/Digital analyzers. Probes used in the analog (4-20mA) may be installed on the available analog inputs on THOR Digital Controllers. Please note the meta data or probe information is NOT available when installed in the analog configuration.

Please contact Pyxis Labs or Energy Resource Products, LLC for more information and availability of THOR compatible Pyxis Probes and Analyzers.
